Brand: Panduit
|
SKU:
482767
Panduit PMV1-5FB-CY | Loose Piece Forks
Regular price
$1.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PMV1-5FB-CY | Loose Piece Forks
Regular price
$1.70
Unit price
Description
Description
Panduit PMV1-5FB-CY | Loose Piece Forks

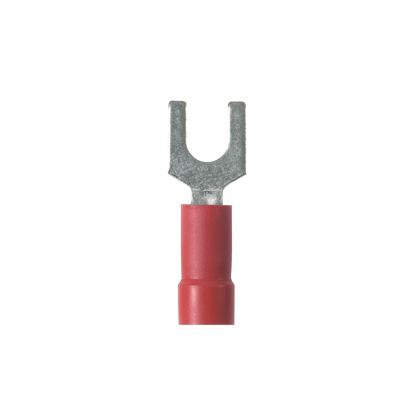

Fork Terminal, butted seam, 0.5 - 1.0mm² wire range, M5 stud size, vinyl barrel insulated, funnel entry.
Panduit - PMV1-5FB-CY - Features
- Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost
Specifications
Specifications
Panduit - PMV1-5FB-CY - Specifications
| Note | PMV1-5FB-CY replaces PMV1-5FB-C |
|---|---|
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | M5 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H, E52164 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.47 |
| Barrel Length (mm) | 11.8 |
| Flammability Rating | UL 587-H |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| UPC | 07498369522 |
