Panduit PMV1-5RB-3K | Ring Terminal | UPC - 07498368445
Regular price
$1,156.68
Unit price
Brand: Panduit
|
SKU:
10044681
Regular price
$1,156.68
Unit price
Description
Description

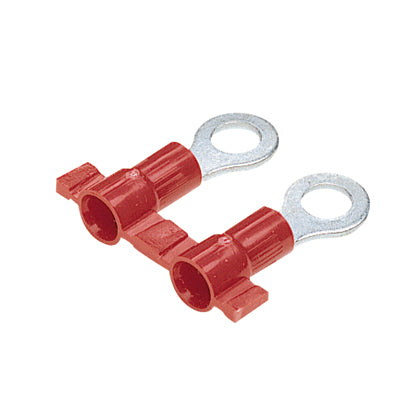

Panduit Pan-Term Reel Smart Terminal, Type PMV-RB, Solid/Stranded Conductor, 22 to 18 AWG Conductor, M5 Stud, 0.88 in Length, Butted Seam/Funnel Entry Barrel, Ring Tongue, 0.35 in W x 0.03 in THK Tongue, 600 VAC, 221 deg F, Copper, Tin Plated, Red
- For nuclear containment areas and high temperature to 300 deg F (150 deg C) applications
- Natural with appropriate color stripe to identify wire range
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Panduit Panduit PMV1-5RB-3K | Ring Terminal | UPC - 07498368445 Key Specs
| Stud Hole Size (In.) | 21/100 |
| Stud Hole Size (mm) | 5.3 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PMV1-5RB-3K | Ring Terminal | UPC - 07498368445 Environmental Information
| Panduit's RoHS Statement | Download and View |
