Panduit PMV2-3FB-3K | Terminals on a Reel | UPC - 07498368362
Regular price
$1,156.68
Unit price
Brand: Panduit
|
SKU:
1055320
Regular price
$1,156.68
Unit price
Description
Description

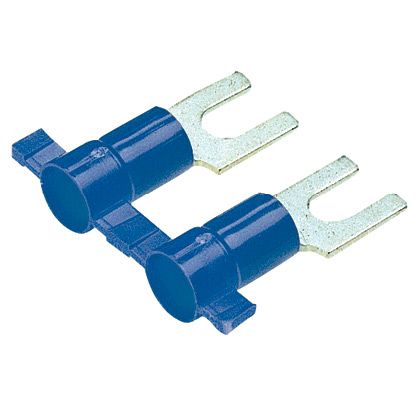

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed Metric, Series: PMV-FB, Stranded Copper Conductor, 1.5 to 2.5 sq-mm Conductor, M3 Stud, 0.78 in Length, Butted Seam/Funnel Entry Barrel, Reel Fed Fork Tongue, 0.23 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 4.3 mm Dia Vinyl Insulation, 5.1 mm Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Brazed seam barrel is serrated for high pullout value
- Insulation is color coded
- On Mylar tape
Panduit PMV2-3FB-3K Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | M3 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.39 |
| Barrel Length (mm) | 9.9 |
| Flammability Rating | UL 587-H |
| Insulation Diameter (In.) | 0.17 |
| Insulation Diameter (mm) | 4.3 |
| Maximum Operating Temperature (°C) | 105 |
Panduit PMV2-3FB-3K Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PMV1-3FB-3K Product Page | Download and View |
| Part Drawings | Fork Terminals, 2 PC. Vinyl Insulated, #16-14, Continuous Reel | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
