Brand: Panduit
|
SKU:
10044683
Panduit PMV2-5RB-3K | Ring Terminal | UPC - 07498368449
Regular price
$265.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PMV2-5RB-3K | Ring Terminal | UPC - 07498368449
Regular price
$265.15
Unit price
Description
Description

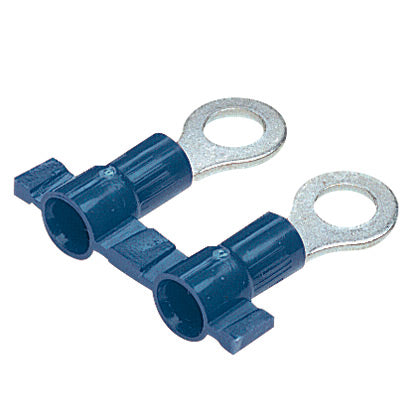

Reel-Fed Ring Terminal, 1.5 – 2.5mm² wire range, M5 stud size, vinyl insulated, funnel entry.
Panduit Panduit PMV2-5RB-3K | Ring Terminal | UPC - 07498368449 Key Specs
| Stud Hole Size (In.) | 21/100 |
| Stud Hole Size (mm) | 5.3 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
Panduit Panduit PMV2-5RB-3K | Ring Terminal | UPC - 07498368449 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PMV1-3RB-3k Product Page | Download and View |
| Part Drawings | Ring Terminals-A41068 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PMV2-5RB-3K | Ring Terminal | UPC - 07498368449 Environmental Information
| Panduit's RoHS Statement | Download and View |
