Brand: Panduit
|
SKU:
10044586

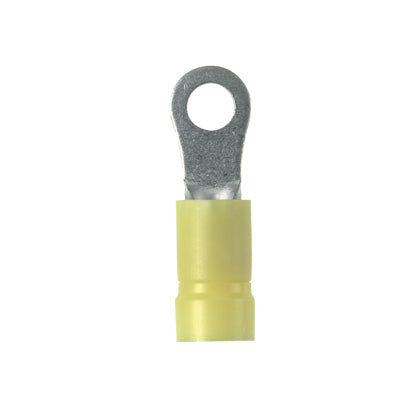

Panduit PMV6-3R-L | Pan-Term | UPC - 07498368720
Regular price
$58.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PMV6-3R-L | Pan-Term | UPC - 07498368720
Regular price
$58.74
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PMV-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, M3 Stud, 1.03 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.23 in W x 0.04 in THK Tongue, 600 VAC, Specifications: Vinyl Insulation, 221 deg F, Copper, TiN Coated, Yellow
- For nuclear containment areas and high temperature to 300 deg F (150 deg C) applications
- Natural with appropriate color stripe to identify wire range
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Panduit Panduit PMV6-3R-L | Pan-Term | UPC - 07498368720 Key Specs
| Stud Hole Size (In.) | 13/100 |
| Stud Hole Size (mm) | 3.3 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG STR) | 10 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6.1 |
| Minimum Metric Conductor Size (mm²) | 6.1 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
Panduit Panduit PMV6-3R-L | Pan-Term | UPC - 07498368720 Environmental Information
| Panduit's RoHS Statement | Download and View |
