Panduit PMV6-5RB-2K | Ring Terminals on Reel | UPC - 07498368453
Regular price
$373.20
Unit price
Description
Description

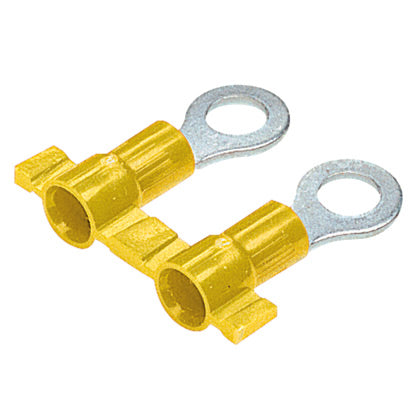

Reel-Fed Ring Terminal, 4.0 – 6.0mm² wire range, M5 stud size, vinyl insulated, funnel entry.
Panduit Panduit PMV6-5RB-2K | Ring Terminals on Reel | UPC - 07498368453 Key Specs
| Stud Hole Size (In.) | 21/100 |
| Stud Hole Size (mm) | 5.3 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG STR) | 10 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.03 |
| Wire Strip Length (mm) | 0.8 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
Panduit Panduit PMV6-5RB-2K | Ring Terminals on Reel | UPC - 07498368453 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PMV1-3RB-3k Product Page | Download and View |
| Part Drawings | Ring Terminals-A41067 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PMV6-5RB-2K | Ring Terminals on Reel | UPC - 07498368453 Environmental Information
| Panduit's RoHS Statement | Download and View |
