Panduit PN10-10R-2K | Reel Smart Ring Terminal, Ylw, Nylon, 10-14 A...
Description
Description

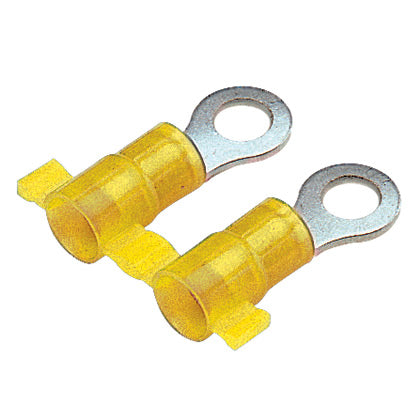

Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.
Ring Terminal, nylon insulated, metal sleeve, 12 " 10 AWG, #10 stud size.
Panduit Pan-Term Reel Smart Terminal, Type PN-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.06 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.38 in W x 0.04 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.31 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PN10-10R-2K - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PN10-10R-2K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN10-10R-2K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| UPC | 07498380631 |
