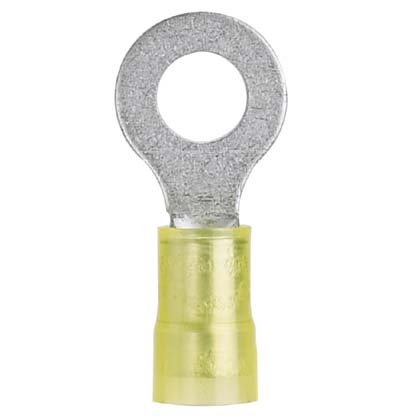

Panduit PN10-12R-E | Ring Terminal | UPC - 07498336546
Regular price
$57.32
Unit price
Brand: Panduit
|
SKU:
10044686
Regular price
$57.32
Unit price
Description
Description
Panduit Ring Terminal, Type PN-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 1/2 in Stud, 1.47 in Length, Insulation Grip Sleeve/Standard/Internal Serration/Insulation Grip Sleeve Barrel, Ring Tongue, 0.72 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.28 in L Wire Strip, 0.28 in Mounting Hole Size, Non-Expanded, Nylon Insulation, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PN10-12R-E | Ring Terminal | UPC - 07498336546 Key Specs
| Stud Hole Size (In.) | 13/25 |
| Stud Hole Size (mm) | 13.2 |
| Stud Size | 1/2" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 10 |
| Maximum Copper Conductor Size (AWG STR) | 10 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PN10-12R-E | Ring Terminal | UPC - 07498336546 Environmental Information
| Panduit's RoHS Statement | Download and View |
