Brand: Panduit
|
SKU:
10044738
Panduit PN10-14F-2K | Terminals on a Reel | UPC - 07498380646
Regular price
$1,045.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN10-14F-2K | Terminals on a Reel | UPC - 07498380646
Regular price
$1,045.55
Unit price
Description
Description

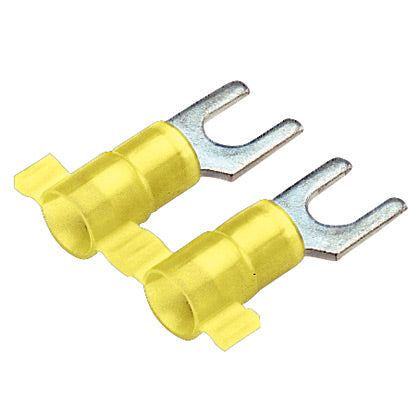

Fork Terminal, nylon insulated, metal insulation grip sleeve, 12 - 10 AWG wire range, 1/4 stud size.
Panduit Panduit PN10-14F-2K | Terminals on a Reel | UPC - 07498380646 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | M6 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL486A-486B, C22.2 No.65, American Bureau of Shipping (ABS) |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PN10-14F-2K | Terminals on a Reel | UPC - 07498380646 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN18-6FN-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PN10-14F-2K | Terminals on a Reel | UPC - 07498380646 Environmental Information
| Panduit's RoHS Statement | Download and View |
