Panduit PN10-14R-E | Ring Terminal | UPC - 07498336547
Regular price
$30.55
Unit price
Brand: Panduit
|
SKU:
10044687
Regular price
$30.55
Unit price
Description
Description

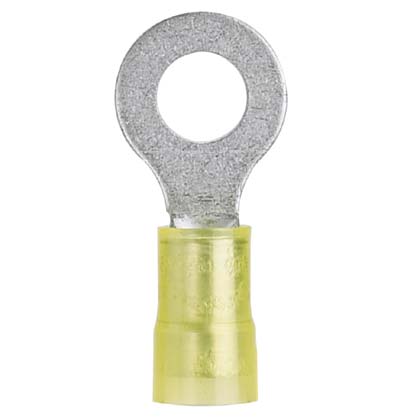

Ring Terminal, 12 – 10 AWG, 1/4" stud size, nylon insulated, convenience package.
Panduit Panduit PN10-14R-E | Ring Terminal | UPC - 07498336547 Key Specs
| Stud Hole Size (In.) | 27/100 |
| Stud Hole Size (mm) | 6.9 |
| Stud Size | 1/4" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 10 |
| Maximum Copper Conductor Size (AWG STR) | 10 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PN10-14R-E | Ring Terminal | UPC - 07498336547 Data Sheets
| Selection Guides | Selection Guide - WW-TMFL05 New Convenience Pack Terminals2 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PN10-14R-E | Ring Terminal | UPC - 07498336547 Environmental Information
| Panduit's RoHS Statement | Download and View |
