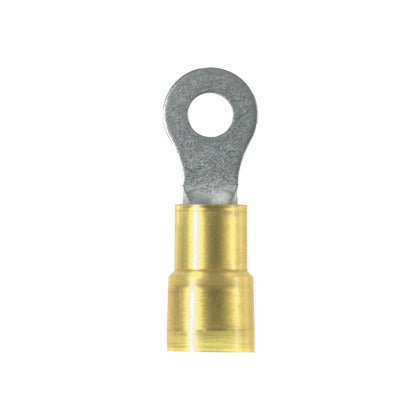

Panduit PN10-56RX-L | Ring Terminal | UPC - 07498380076
Regular price
$108.58
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PN-RX, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 5/16 in Stud, 1.27 in Length, Insulation Grip Sleeve/Expanded Entry Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.42 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PN10-56RX-L | Ring Terminal | UPC - 07498380076 Key Specs
| Stud Hole Size (In.) | 17/50 |
| Stud Hole Size (mm) | 8.6 |
| Stud Size | 5/16" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 10 |
| Maximum Copper Conductor Size (AWG STR) | 10 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PN10-56RX-L | Ring Terminal | UPC - 07498380076 Environmental Information
| Panduit's RoHS Statement | Download and View |
