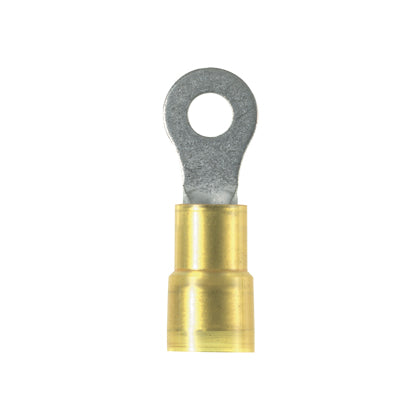

Panduit PN10-6RX-L | Ring Terminal | UPC - 07498380068
Regular price
$82.95
Unit price
Brand: Panduit
|
SKU:
10044693
Regular price
$82.95
Unit price
Description
Description
Ring Terminal, 12 – 10 AWG, #6 stud size, nylon insulated, expanded insulation for large wire O.D.
Panduit Panduit PN10-6RX-L | Ring Terminal | UPC - 07498380068 Key Specs
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 3.8 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 10 |
| Maximum Copper Conductor Size (AWG STR) | 10 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PN10-6RX-L | Ring Terminal | UPC - 07498380068 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN14-6RX-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41273_07 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PN10-6RX-L | Ring Terminal | UPC - 07498380068 Environmental Information
| Panduit's RoHS Statement | Download and View |
