Brand: Panduit
|
SKU:
PAN-PN10-8R-2K

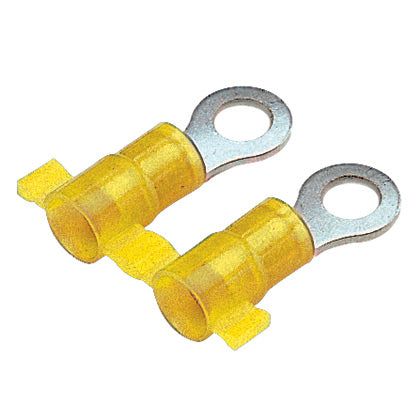

Panduit PN10-8R-2K | Ring Terminal | UPC - 07498380630
Regular price
$1,392.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN10-8R-2K | Ring Terminal | UPC - 07498380630
Regular price
$1,392.74
Unit price
Brand: Panduit
|
SKU:
PAN-PN10-8R-2K
Regular price
$1,392.74
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Reel Smart Terminal, Type PN-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #8 Stud, 1.06 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit PN10-8R-2K | Ring Terminal | UPC - 07498380630 Key Specs
| Stud Hole Size (In.) | 1/6 |
| Stud Hole Size (mm) | 4.3 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 10 |
| Maximum Copper Conductor Size (AWG STR) | 10 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PN10-8R-2K | Ring Terminal | UPC - 07498380630 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN18-4R-3K Product Page | Download and View |
| Part Drawings | Ring Terminals-A41098 | Download and View |
| Cross References | Terminal Military Cross Reference | Download and View |
Panduit PN10-8R-2K | Ring Terminal | UPC - 07498380630 Environmental Information
| Panduit's RoHS Statement | Download and View |
