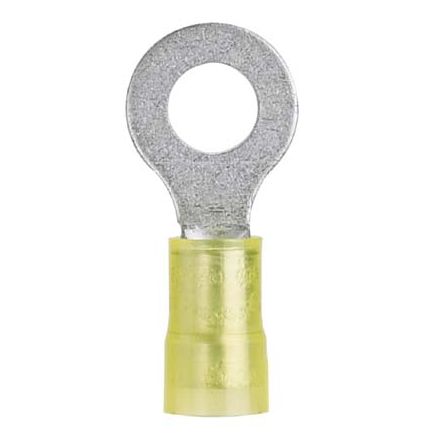

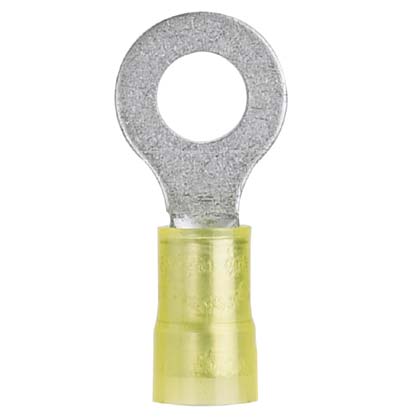

Panduit PN10-8R-L | Pan-Term Ring Terminal, Yellow, Nylon, 10-12 AWG, PK50
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN10-8R-L | Pan-Term Ring Terminal, Yellow, Nylon, 10-12 AW...
Description
Description
Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.
The PN10-8R-L Pan-Term Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assur e good wire contact and maximum tensile strength.
Panduit Pan-Term Terminal, Type PN-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #8 Stud, 1.06 in Length, Seamed/Standard Barrel, Ring Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.31 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PN10-8R-L - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PN10-8R-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN10-8R-L |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-156) |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498380030 |
Panduit - PN10-8R-L - Videos
| Panduit PN10-8R-L Video 1 | Click to View |
|---|---|
| Panduit PN10-8R-L Video 2 | Click to View |
