Brand: Panduit
|
SKU:
10044696
Panduit PN12-10HDR-2K | Ring Terminal | UPC - 07498379987
Regular price
$1,613.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN12-10HDR-2K | Ring Terminal | UPC - 07498379987
Regular price
$1,613.75
Unit price
Description
Description

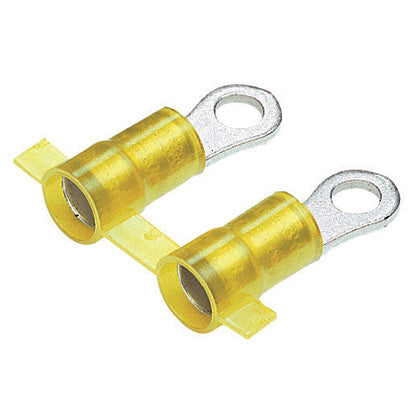

Panduit Pan-Term Reel Smart Terminal, Type PN-HDR Heavy-Duty, Solid/Stranded Conductor, 16 to 12 AWG Conductor, #10 Stud, 1.05 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.38 in W x 0.05 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.31 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PN12-10HDR-2K | Ring Terminal | UPC - 07498379987 Key Specs
| Stud Hole Size (In.) | 1/5 |
| Stud Hole Size (mm) | 5.1 |
| Stud Size | #10 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 12 |
| Maximum Copper Conductor Size (AWG STR) | 12 |
| Maximum Copper Conductor Size (AWG) | 12 |
| Maximum Wire Size (AWG) | 12 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 4 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PN12-10HDR-2K | Ring Terminal | UPC - 07498379987 Environmental Information
| Panduit's RoHS Statement | Download and View |
