Description
Description

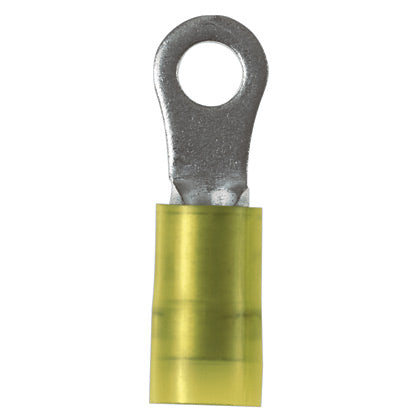

Panduit Pan-Term Terminal, Type PN-HDR Heavy-Duty, Solid/Stranded Conductor, 16 to 12 AWG Conductor, #10 Stud, 1.09 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.37 in W x 0.05 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.33 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PN12-10HDR-D | Ring Terminal | UPC - 07498380242 Key Specs
| Stud Hole Size (In.) | 1/5 |
| Stud Hole Size (mm) | 5.1 |
| Stud Size | #10 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 12 |
| Maximum Copper Conductor Size (AWG STR) | 12 |
| Maximum Copper Conductor Size (AWG) | 12 |
| Maximum Wire Size (AWG) | 12 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PN12-10HDR-D | Ring Terminal | UPC - 07498380242 Data Sheets
| Part Drawings | Heavy Duty Ring Terminals-A41283 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PN12-10HDR-D | Ring Terminal | UPC - 07498380242 Environmental Information
| Panduit's RoHS Statement | Download and View |
