Brand: Panduit
|
SKU:
PAN-PN12-8HDR-D
Panduit PN12-8HDR-D | Ring Terminal | UPC - 07498380241
Regular price
$347.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN12-8HDR-D | Ring Terminal | UPC - 07498380241
Regular price
$347.12
Unit price
Brand: Panduit
|
SKU:
PAN-PN12-8HDR-D
Regular price
$347.12
Unit price
Shipping calculated at checkout.
Description
Description

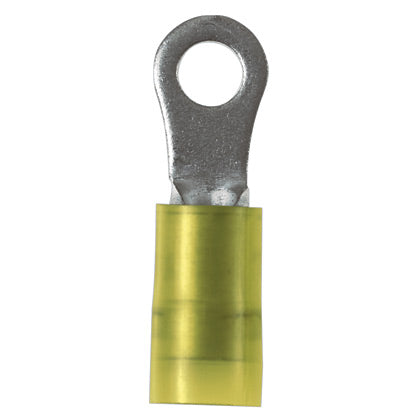

Panduit Pan-Term Terminal, Type PN-HDR Heavy-Duty, Solid/Stranded Conductor, 16 to 12 AWG Conductor, #8 Stud, 1.06 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.31 in W x 0.05 in THK Tongue, 600 VAC, 9/32 in L Wire Strip, 0.35 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PN12-8HDR-D | Ring Terminal | UPC - 07498380241 Key Specs
| Stud Hole Size (In.) | 1/6 |
| Stud Hole Size (mm) | 4.3 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 12 |
| Maximum Copper Conductor Size (AWG STR) | 12 |
| Maximum Copper Conductor Size (AWG) | 12 |
| Maximum Wire Size (AWG) | 12 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PN12-8HDR-D | Ring Terminal | UPC - 07498380241 Data Sheets
| Part Drawings | Heavy Duty Ring Terminals-A41283 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PN12-8HDR-D | Ring Terminal | UPC - 07498380241 Environmental Information
| Panduit's RoHS Statement | Download and View |
