Panduit PN14-10FF-3K | Reel Smart Terminals on a Reel
Regular price
$1.70
Unit price
Brand: Panduit
|
SKU:
PN14-10FF-3K
Regular price
$1.70
Unit price
Description
Description

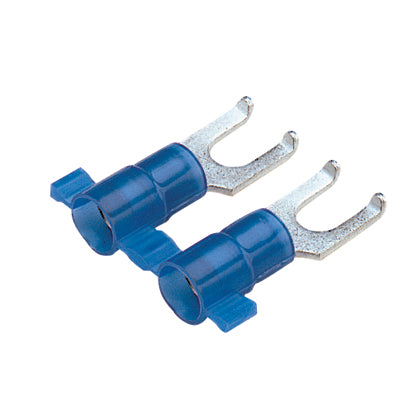

Panduit PN14-10FF-3K | Reel Smart Terminals on a Reel
Our nylon-insulated flanged fork terminal tackles your demanding electrical tasks with ease, offers a secure, vibration-resistant connection with a strong flange.
Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PN-FF, Stranded Copper Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.87 in Length, Insulation Grip Sleeve Barrel, Flanged Fork Tongue, 0.35 in W Tongue, 600 VAC, 0.22 in L Wire Strip, 0.16 in Nylon Insulation, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
Panduit - PN14-10FF-3K - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - PN14-10FF-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-10FF-3K |
| Fork Type | Flanged Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380678 |
