Brand: Panduit
|
SKU:
10044491

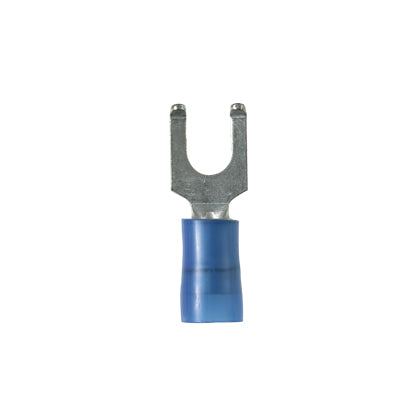

Panduit PN14-10FF-C | Loose Piece Forks | UPC - 07498380610
Regular price
$165.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN14-10FF-C | Loose Piece Forks | UPC - 07498380610
Regular price
$165.30
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-FF, Stranded Copper Conductor, 18 to 14 AWG Conductor, #10 Stud, 0.86 in Length, Funnel Entry/Sleeved Barrel, Flanged Fork Tongue, 0.36 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.08 to 0.162 in Dia Nylon Insulation, 0.23 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PN14-10FF-C | Loose Piece Forks | UPC - 07498380610 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PN14-10FF-C | Loose Piece Forks | UPC - 07498380610 Environmental Information
| Panduit's RoHS Statement | Download and View |
