Brand: Panduit
|
SKU:
PAN-PN14-10LF-3K
Panduit PN14-10LF-3K | Terminals on a Reel | UPC - 07498380654
Regular price
$1,393.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN14-10LF-3K | Terminals on a Reel | UPC - 07498380654
Regular price
$1,393.02
Unit price
Brand: Panduit
|
SKU:
PAN-PN14-10LF-3K
Regular price
$1,393.02
Unit price
Shipping calculated at checkout.
Description
Description

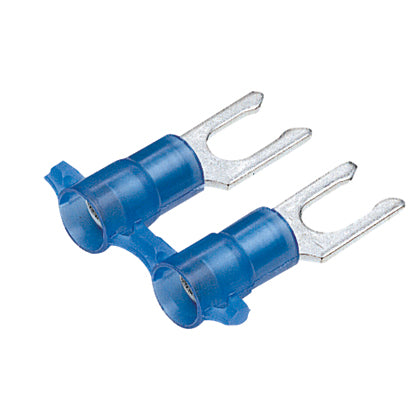

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PN-LF, Stranded Copper Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.92 in Length, Insulation Grip Sleeve Barrel, Locking Fork Tongue, 0.33 in W Tongue, 600 VAC, 0.22 in L Wire Strip, 0.16 in Nylon Insulation, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PN14-10LF-3K | Terminals on a Reel | UPC - 07498380654 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PN14-10LF-3K | Terminals on a Reel | UPC - 07498380654 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN18-6LF-3K Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - N41102BA | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PN14-10LF-3K | Terminals on a Reel | UPC - 07498380654 Environmental Information
| Panduit's RoHS Statement | Download and View |
