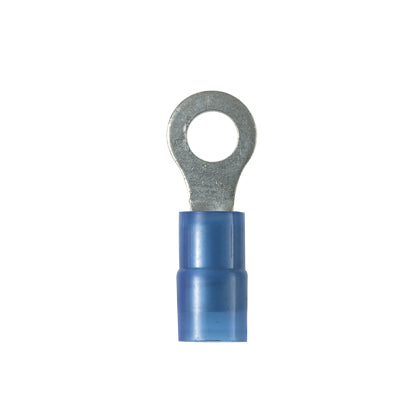

Panduit PN14-10R-E | Ring Terminal | UPC - 07498336552
Regular price
$116.74
Unit price
Brand: Panduit
|
SKU:
10044707
Regular price
$116.74
Unit price
Description
Description
Ring Terminal, 18 – 14 AWG, #10 stud size, nylon insulated, convenience package.
Panduit Panduit PN14-10R-E | Ring Terminal | UPC - 07498336552 Key Specs
| Stud Hole Size (In.) | 1/5 |
| Stud Hole Size (mm) | 5.1 |
| Stud Size | #10 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PN14-10R-E | Ring Terminal | UPC - 07498336552 Data Sheets
| Selection Guides | Selection Guide - WW-TMFL05 New Convenience Pack Terminals2 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PN14-10R-E | Ring Terminal | UPC - 07498336552 Environmental Information
| Panduit's RoHS Statement | Download and View |
