Brand: Panduit
|
SKU:
256142
Panduit PN14-10RX-C | Ring Terminal, Expanded Nylon Insulation, 16 - 14 AWG, #10 Stud Size, Pack of 100
Regular price
$151.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN14-10RX-C | Ring Terminal, Expanded Nylon Insulation, 16 ...
Regular price
$151.31
Unit price
Description
Description

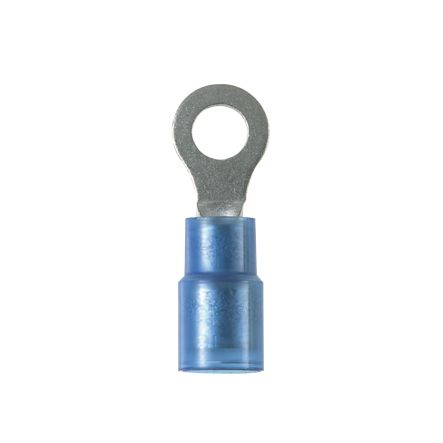

Panduit PN14-10RX-C | Pan-Term PN14-10RX-C Ring Terminal, Expanded, Blue, Nylon, 14-18 AWG, #10 Stud
The PN14-10RX-C Pan-Term Terminal is a nylon insulated, ring terminal with expanded wire entry for wire with larger insulation thickness. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit - PN14-10RX-C - Features
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL486
Specifications
Specifications
Panduit - PN14-10RX-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PN14-10RX-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-10RX-C |
| Item Description | Pan-Term PN14-10RX-C Ring Terminal, Expanded, Blue, Nylon, 14-18 AWG, #10 Stud |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.2 |
| Maximum Wire Insulation Diameter (mm) | 5.08 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.93 |
| Overall Length (mm) | 23.6 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PN14-10RX-C - Package Information
| UPC | 07498380046 |
|---|---|
| Standard Pkg. Qty. | 100 |
| Standard Package Volume (cf) | 0.0074 |
| Standard Ctn. Qty. | 500 |
| Standard Ctn. Volume (cf) | 0.0368 |
Panduit - PN14-10RX-C - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
