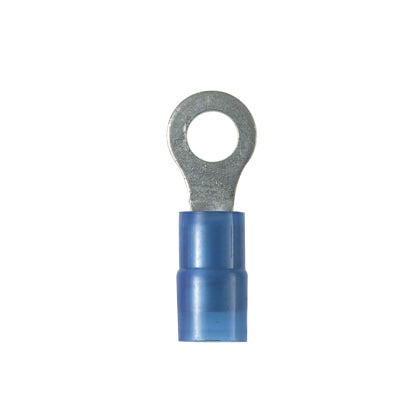

Panduit PN14-14R-C | Pan-Term Ring Terminal, Blue, Nylon, 14-18 AWG...
Description
Description
Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.
The PN14-14R-C Pan-Term Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assu re good wire contact and maximum tensile strength.
Panduit Pan-Term Terminal, Type PN-R, Solid/Stranded Conductor, 18 to 14 AWG Conductor, 1/4 in Stud, 1.05 in Length, Seamed/Standard Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Panduit - PN14-14R-C - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PN14-14R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-14R-C |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-154) |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498380022 |
Panduit - PN14-14R-C - Videos
| Panduit PN14-14R-C Video 1 | Click to View |
|---|---|
| Panduit PN14-14R-C Video 2 | Click to View |
