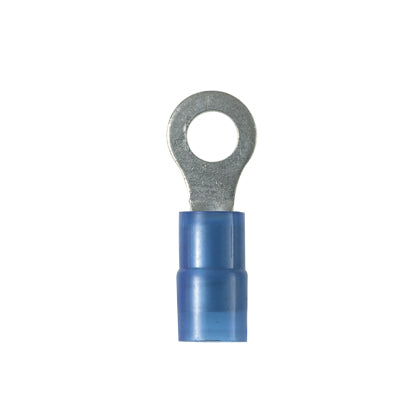

Panduit PN14-38R-L | Pan-Term Loose Piece Ring Terminal
Regular price
$69.19
Unit price
Brand: Panduit
|
SKU:
PN14-38R-L
Regular price
$69.19
Unit price
Description
Description
Panduit PN14-38R-L | Pan-Term Loose Piece Ring Terminal
Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.
Ring Terminal, 18 - 14 AWG, 3/8" stud size, nylon insulated.
Panduit Pan-Term Terminal, Type PN-R, Solid/Stranded Conductor, 18 to 14 AWG Conductor, 3/8 in Stud, 1.14 in Length, Seamed/Standard Barrel, Ring Tongue, 0.53 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.43 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Panduit - PN14-38R-L - Features
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Expanded insulation for large wire OD
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PN14-38R-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-38R-L |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-110) |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.57 |
| Barrel Length (mm) | 14.5 |
| UPC | 07498380026 |
