Brand: Panduit
|
SKU:
PAN-PN14-38R-M
Panduit PN14-38R-M | Pan-Term PN14-38R-M Loose Piece Ring Terminal
Regular price
$592.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN14-38R-M | Pan-Term PN14-38R-M Loose Piece Ring Terminal
Regular price
$592.51
Unit price
Brand: Panduit
|
SKU:
PAN-PN14-38R-M
Regular price
$592.51
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PN14-38R-M | Pan-Term PN14-38R-M Loose Piece Ring Terminal

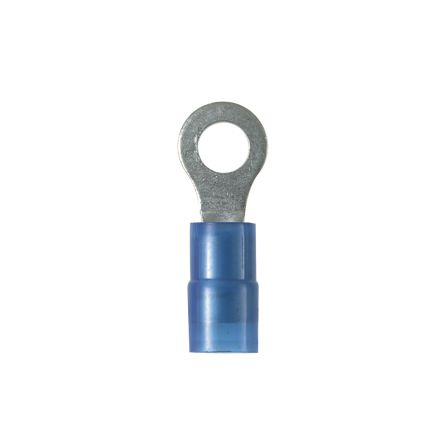

Ring Terminal, 18 – 14 AWG, 3/8" stud size, nylon insulated, bulk package.
Panduit - PN14-38R-M - Features
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PN14-38R-M - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PN14-38R-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-38R-M |
| Item Description | Pan-Term PN14-38R-M Loose Piece Ring Terminal |
| Stud Hole Size (In.) | 3/8" |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-110) |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.57 |
| Barrel Length (mm) | 14.5 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Minimum Wire Insulation Diameter (In.) | 0.08 |
| Minimum Wire Insulation Diameter (mm) | 2 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.14 |
| Overall Length (mm) | 29 |
| Overall Width (In.) | 0.53 |
| Overall Width (mm) | 13.5 |
| Tongue Length (In.) | 0.57 |
| Tongue Length (mm) | 14.5 |
| Tongue Width (In.) | 0.53 |
| Tongue Width (mm) | 13.5 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PN14-38R-M - Package Information
| UPC | 07498380027 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.5473 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
