Brand: Panduit
|
SKU:
10044551

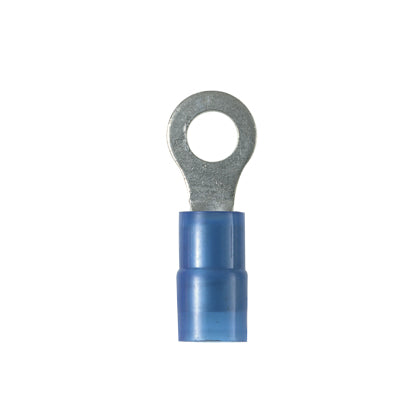

Panduit PN14-4R-M | Loose Piece Ring Terminal | UPC - 07498380015
Regular price
$461.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN14-4R-M | Loose Piece Ring Terminal | UPC - 07498380015
Regular price
$461.54
Unit price
Description
Description
Panduit Pan-Term Terminal, Type PN-R, Solid/Stranded Conductor, 18 to 14 AWG Conductor, #4 Stud, 0.78 in Length, Seamed/Standard Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.2 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PN14-4R-M | Loose Piece Ring Terminal | UPC - 07498380015 Key Specs
| Stud Hole Size (In.) | 1/8 |
| Stud Hole Size (mm) | 3 |
| Stud Size | #4 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.3 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PN14-4R-M | Loose Piece Ring Terminal | UPC - 07498380015 Environmental Information
| Panduit's RoHS Statement | Download and View |
