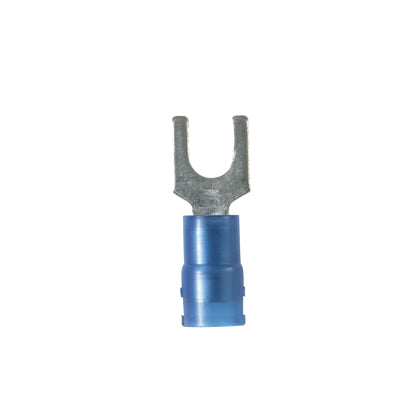

Panduit PN14-6F-C | Loose Piece Forks | UPC - 07498380308
Regular price
$116.32
Unit price
Brand: Panduit
|
SKU:
PAN-PN14-6F-C
Regular price
$116.32
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-F, Stranded Copper Conductor, 18 to 14 AWG Conductor, #6 Stud, 0.79 in Length, Sleeved Barrel, Standard Fork Tongue, 0.28 in W x 0.032 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.162 in Dia Nylon Insulation, 0.19 in Clearance, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PN14-6F-C | Loose Piece Forks | UPC - 07498380308 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed UL486A-486B ; CSA Certified C22.2 No.65 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PN14-6F-C | Loose Piece Forks | UPC - 07498380308 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN22-2F-C product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41192 | Download and View |
| Selection Guides | Loose Piece Terminals and Ferrules: TMSG08--SA-ENG | Download and View |
Panduit PN14-6F-C | Loose Piece Forks | UPC - 07498380308 Environmental Information
| Panduit's RoHS Statement | Download and View |
