Description
Description

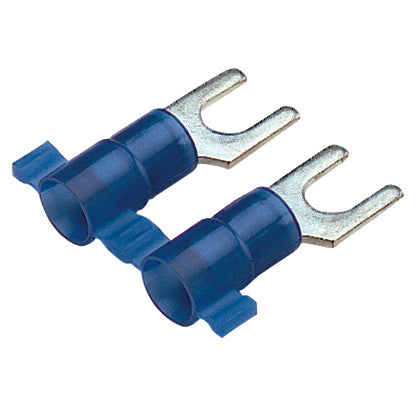

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: P-FN, Stranded Copper Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.78 in Length, Insulation Grip Sleeve Barrel, Narrow Fork Tongue, 0.24 in W Tongue, 600 VAC, 0.22 in L Wire Strip, 0.16 in Nylon Insulation, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
- Non-expanded insulation
Panduit PN14-6FN-3K | Terminals on a Reel | UPC - 07498381083 Key Specs
| Fork Type | Narrow Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | M3.5 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PN14-6FN-3K | Terminals on a Reel | UPC - 07498381083 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN18-6FN-3K Product Page | Download and View |
| Part Drawings | Fork Terminals-A41095 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PN14-6FN-3K | Terminals on a Reel | UPC - 07498381083 Environmental Information
| Panduit's RoHS Statement | Download and View |
