Panduit PN14-6LF-C | Pan-Term Loose Piece Forks
Description
Description

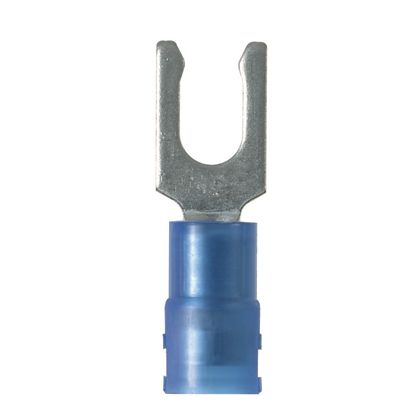

Our nylon-insulated locking fork terminal combines a secure, locking fork with vibration-resistant insulation for lasting performance.
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-LF, Stranded Copper Conductor, 18 to 14 AWG Conductor, #6 Stud, 0.86 in Length, Sleeved Barrel, Locking Fork Tongue, 0.25 in W x 0.032 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.08 to 0.162 in Dia Nylon Insulation, 0.22 in Clearance, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
Panduit - PN14-6LF-C - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Flange design provides extra secure connection on a variety of applications
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PN14-6LF-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-6LF-C |
| Fork Type | Locking Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380088 |
Panduit - PN14-6LF-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
