Brand: Panduit
|
SKU:
1042183

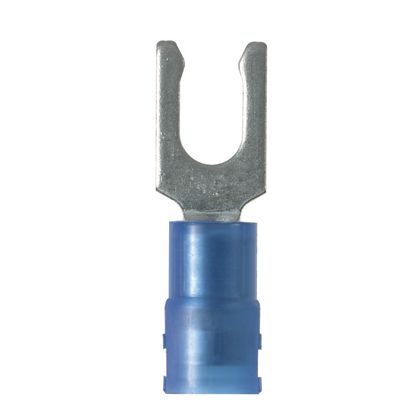

Panduit PN14-6LF-M | Loose Piece Forks | UPC - 07498380089
Regular price
$474.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN14-6LF-M | Loose Piece Forks | UPC - 07498380089
Regular price
$474.27
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-LF, Stranded Copper Conductor, 18 to 14 AWG Conductor, #6 Stud, 0.86 in Length, Sleeved Barrel, Locking Fork Tongue, 0.25 in W x 0.032 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.08 to 0.162 in Dia Nylon Insulation, 0.22 in Clearance, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
Panduit PN14-6LF-M Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Beveled |
| Barrel Length (In.) | 0.43 |
| Barrel Length (mm) | 10.9 |
| Flammability Rating | UL 587-H |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
Panduit PN14-6LF-M Data Sheets
| Part Drawings | Part Drawing - PDF - A41291 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
