Description
Description

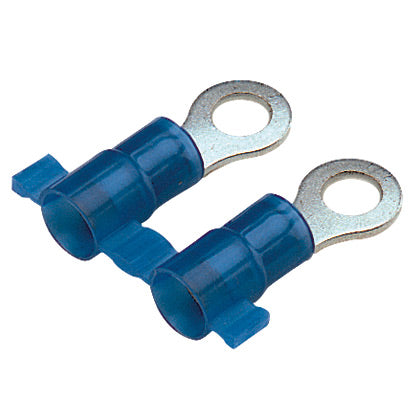

Panduit Pan-Term Reel Smart Terminal, Type PN-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.86 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit PN14-6R-3K | Ring Terminal on Reel | UPC - 07498380624 Key Specs
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 3.8 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PN14-6R-3K | Ring Terminal on Reel | UPC - 07498380624 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN18-4R-3K Product Page | Download and View |
| Part Drawings | Ring Terminals-A41099 | Download and View |
| Cross References | Terminal Military Cross Reference | Download and View |
Panduit PN14-6R-3K | Ring Terminal on Reel | UPC - 07498380624 Environmental Information
| Panduit's RoHS Statement | Download and View |
