Panduit PN14-6RN-M | Pan-Term PN14-6RN-M Ring Terminal
Regular price
$1.47
Unit price
Description
Description

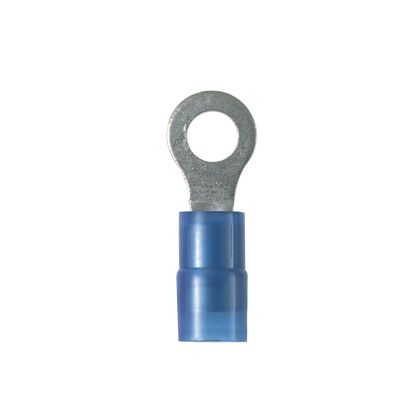

Panduit PN14-6RN-M | Pan-Term PN14-6RN-M Ring Terminal
Ring Terminal, 18 – 14 AWG, #6 stud size, narrow tongue, nylon insulated, bulk package.
Specifications
Specifications
Panduit - PN14-6RN-M - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PN14-6RN-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-6RN-M |
| Item Description | Pan-Term PN14-6RN-M Ring Terminal |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-106) |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.7 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Minimum Wire Insulation Diameter (In.) | 0.16 |
| Minimum Wire Insulation Diameter (mm) | 4.1 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.76 |
| Overall Length (mm) | 19.3 |
| Overall Width (In.) | 0.25 |
| Overall Width (mm) | 6.4 |
| Tongue Length (In.) | 0.38 |
| Tongue Length (mm) | 9.7 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.25 |
| Tongue Width (mm) | 6.4 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
