Brand: Panduit
|
SKU:
PAN-PN14-6RN-M
Panduit PN14-6RN-M | Ring Terminal | UPC - 07498380093
Regular price
$447.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN14-6RN-M | Ring Terminal | UPC - 07498380093
Regular price
$447.56
Unit price
Brand: Panduit
|
SKU:
PAN-PN14-6RN-M
Regular price
$447.56
Unit price
Shipping calculated at checkout.
Description
Description

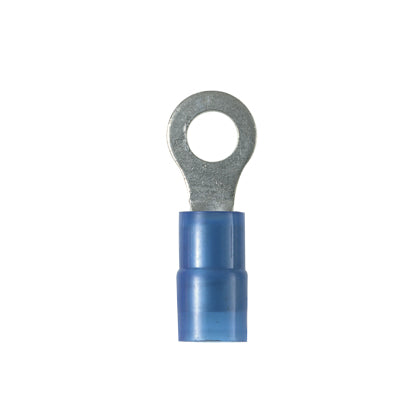

Panduit Pan-Term Terminal, Type PN-RN, Solid/Stranded Conductor, 18 to 14 AWG Conductor, #6 Stud, 0.76 in Length, Seamed/Sleeved/Standard Barrel, Narrow Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.2 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PN14-6RN-M | Ring Terminal | UPC - 07498380093 Key Specs
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 3.8 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit PN14-6RN-M | Ring Terminal | UPC - 07498380093 Data Sheets
| Part Drawings | Part Drawing - PDF - A4118510 | Download and View |
| Cross References | Terminal Military Cross Reference | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PN14-6RN-M | Ring Terminal | UPC - 07498380093 Environmental Information
| Panduit's RoHS Statement | Download and View |
