Our expanded ring terminal handles large wires and high-vibration environments with its extra-wide opening, and protective sleeve for lasting connections.

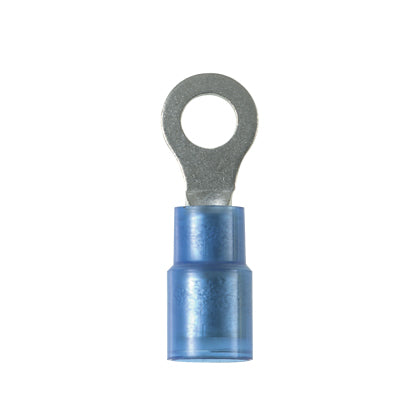

Ring Terminal, 16 " 14 AWG, #6 stud size, nylon insulated, expanded insulation for large wire O.D.
Panduit Pan-Term Terminal, Type PN-RX, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.93 in Length, Insulation Grip Sleeve/Expanded Entry Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Panduit - PN14-6RX-C - Features
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL486
Specifications
Specifications
Panduit - PN14-6RX-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-6RX-C |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.47 |
| Barrel Length (mm) | 11.9 |
| UPC | 07498380042 |
