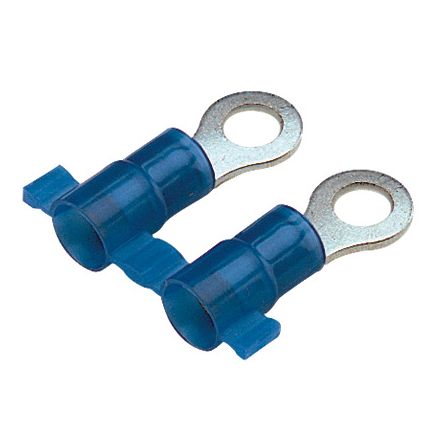

Panduit PN14-8R-3K | Reel Smart Pn14-8R-3K Ring Terminal, Blue, Nylon, 16 Awg, #8 Stud, Pk3000
Ring Terminal, nylon insulated, metal sleeve, 16 – 14 AWG, #8 stud size.
Panduit - PN14-8R-3K - Features
- Panduit Pan-Term Reel Smart Terminal, Type PN-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.86 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 1/4 in L Wire Strip, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - PN14-8R-3K - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PN14-8R-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-8R-3K |
| Item Description | Reel Smart Pn14-8R-3K Ring Terminal, Blue, Nylon, 16 Awg, #8 Stud, Pk3000 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-153) |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.43 |
| Barrel Length (mm) | 10.9 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Minimum Wire Insulation Diameter (In.) | 0.16 |
| Minimum Wire Insulation Diameter (mm) | 4.1 |
| Sub Brand | Reel Smart |
| Overall Length (In.) | 0.86 |
| Overall Length (mm) | 21.8 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Length (In.) | 0.43 |
| Tongue Length (mm) | 10.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Reel |
| Product Type | Ring Terminal |
| For Use With | Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator |
| Part Features | • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
| MPN: | PN14-8R-3K |
| Barrel Type: | Insulation Grip Sleeve/Standard |
| Color: | Blue |
| Conductor Size: | 16 to 14 AWG |
| Conductor Type: | Solid/Stranded |
| Finish: | Tin Plated |
| Length: | 0.86 in |
| Material: | Copper |
| Series: | PN Series |
| Specifications: | 1/4 in L Wire Strip, 1/4 in Clearance |
| Stud Size: | #8 |
| Temperature Rating: | 221 deg F |
| Tongue Size: | 0.31 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Type PN-R |
| Voltage Rating: | 600 VAC |
Panduit - PN14-8R-3K - Package Information
| UPC | 07498380626 |
|---|---|
| Standard Package Quantity | 3000 |
| Standard Package Volume (cf) | 0.9208 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
