Brand: Panduit
|
SKU:
252628
Panduit PN14-8R-C | Pan-Term Pn14-8R-C Ring Terminal, Blue, Nylon, 14-18 Awg, #8 Stud, Pk100
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN14-8R-C | Pan-Term Pn14-8R-C Ring Terminal, Blue, Nylon, ...
Regular price
$1.46
Unit price
Description
Description

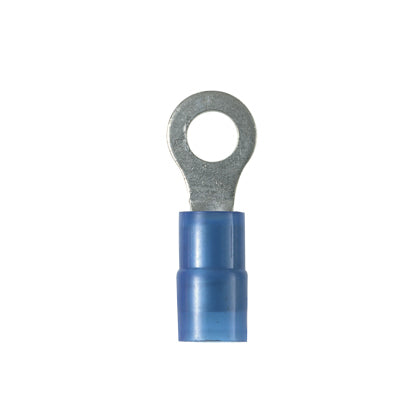

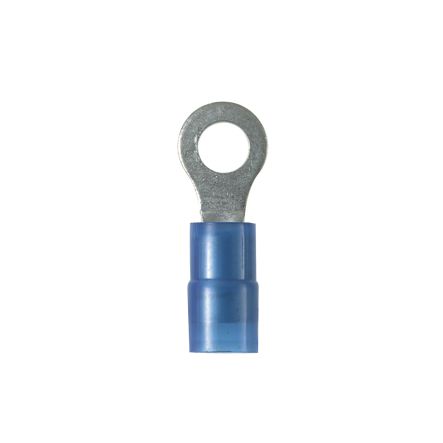

Panduit PN14-8R-C | Pan-Term Pn14-8R-C Ring Terminal, Blue, Nylon, 14-18 Awg, #8 Stud, Pk100
The PN14-8R-C Pan-Term Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit - PN14-8R-C - Features
- Panduit Pan-Term Terminal, Type PN-R, Solid/Stranded Conductor, 18 to 14 AWG Conductor, #8 Stud, 0.85 in Length, Seamed/Standard Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PN14-8R-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PN14-8R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-8R-C |
| Item Description | Pan-Term Pn14-8R-C Ring Terminal, Blue, Nylon, 14-18 Awg, #8 Stud, Pk100 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-153) |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.85 |
| Overall Length (mm) | 21.6 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
| MPN: | PN14-8R-C |
| Barrel Type: | Seamed/Standard |
| Color: | Blue |
| Conductor Size: | 18 to 14 AWG |
| Conductor Type: | Solid/Stranded |
| Finish: | Tin Plated |
| Length: | 0.85 in |
| Material: | Copper |
| Series: | PN Series |
| Specifications: | 7/32 in L Wire Strip, 1/4 in Clearance |
| Stud Size: | #8 |
| Temperature Rating: | 221 deg F |
| Tongue Size: | 0.31 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Type PN-R |
| Voltage Rating: | 600 VAC |
Panduit - PN14-8R-C - Package Information
| UPC | 07498380018 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0064 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0319 |
