Brand: Panduit
|
SKU:
PAN-PN14-8R-M

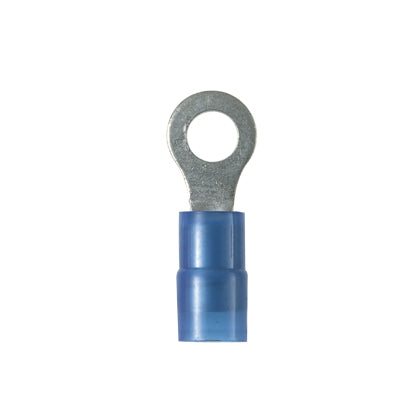

Panduit PN14-8R-M | Pan-Term Ring Terminal, Blue, Nylon, 14-18 AWG, #8 Stud, PK1000
Regular price
$436.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN14-8R-M | Pan-Term Ring Terminal, Blue, Nylon, 14-18 AWG,...
Regular price
$436.12
Unit price
Brand: Panduit
|
SKU:
PAN-PN14-8R-M
Regular price
$436.12
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PN14-8R-M | Pan-Term Ring Terminal, Blue, Nylon, 14-18 AWG, #8 Stud, PK1000
Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.
Panduit Pan-Term Terminal, Type PN-R, Solid/Stranded Conductor, 18 to 14 AWG Conductor, #8 Stud, 0.85 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Panduit - PN14-8R-M - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Specifications
Specifications
Panduit - PN14-8R-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-8R-M |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-153) |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.08 |
| UPC | 07498380019 |
Panduit - PN14-8R-M - Videos
| Panduit PN14-8R-M Video 1 | Click to View |
|---|---|
| Panduit PN14-8R-M Video 2 | Click to View |
