Panduit PN14-8RX-C | Pan-Term PN14-8RX-C Ring Terminal
Regular price
$143.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN14-8RX-C | Pan-Term PN14-8RX-C Ring Terminal
Regular price
$143.67
Unit price
Description
Description
Panduit PN14-8RX-C | Pan-Term PN14-8RX-C Ring Terminal

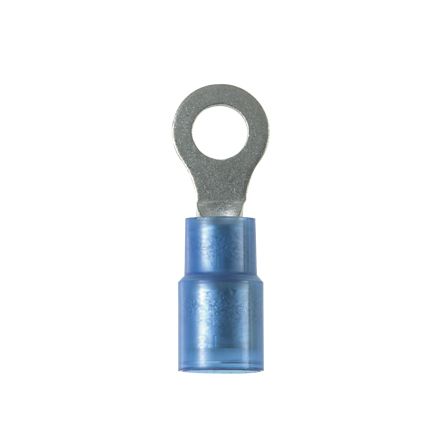

Ring Terminal, 16 – 14 AWG, #8 stud size, nylon insulated, expanded insulation for large wire O.D.
Panduit - PN14-8RX-C - Features
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL486
Specifications
Specifications
Panduit - PN14-8RX-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PN14-8RX-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN14-8RX-C |
| Item Description | Pan-Term PN14-8RX-C Ring Terminal |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.47 |
| Barrel Length (mm) | 11.9 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.2 |
| Insulation Diameter (mm) | 5.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.2 |
| Maximum Wire Insulation Diameter (mm) | 5.1 |
| Minimum Wire Insulation Diameter (In.) | 0.2 |
| Minimum Wire Insulation Diameter (mm) | 5.1 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.93 |
| Overall Length (mm) | 23.6 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Length (In.) | 0.47 |
| Tongue Length (mm) | 11.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PN14-8RX-C - Package Information
| UPC | 07498380044 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0098 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.0488 |
