Brand: Panduit
|
SKU:
10044501
Panduit PN18-10FF-C | Loose Piece Forks | UPC - 07498380604
Regular price
$119.84
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-10FF-C | Loose Piece Forks | UPC - 07498380604
Regular price
$119.84
Unit price
Description
Description

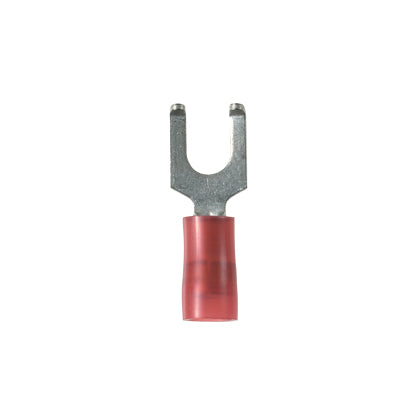

Flanged Fork Terminal, nylon insulated, 22 - 16 AWG, #10 stud size, standard package.
Panduit Panduit PN18-10FF-C | Loose Piece Forks | UPC - 07498380604 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PN18-10FF-C | Loose Piece Forks | UPC - 07498380604 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN18-6FF-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4123907 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit PN18-10FF-C | Loose Piece Forks | UPC - 07498380604 Environmental Information
| Panduit's RoHS Statement | Download and View |
