Panduit PN18-10LF-3K | Terminals on a Reel | UPC - 07498380650
Regular price
$375.99
Unit price
Description
Description

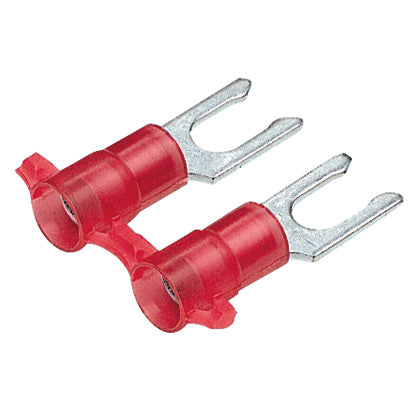

Locking Fork Terminal, nylon insulated, metal insulation grip sleeve, 22 - 18 AWG wire range, #10 stud size.
Panduit Panduit PN18-10LF-3K | Terminals on a Reel | UPC - 07498380650 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PN18-10LF-3K | Terminals on a Reel | UPC - 07498380650 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PN18-6LF-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Locking Forks 3 Pc. Nylon Insulated #22-18 Barrel, Continuous Reel | Download and View |
Panduit Panduit PN18-10LF-3K | Terminals on a Reel | UPC - 07498380650 Environmental Information
| Panduit's RoHS Statement | Download and View |
