Brand: Panduit
|
SKU:
10044715

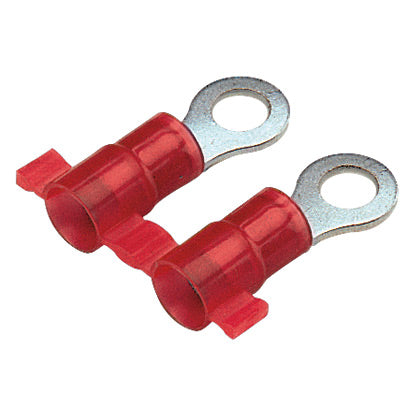

Panduit PN18-14R-3K | Ring Terminal | UPC - 07498380696
Regular price
$1,868.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-14R-3K | Ring Terminal | UPC - 07498380696
Regular price
$1,868.07
Unit price
Description
Description
Panduit Pan-Term Reel Smart Terminal, Type PN-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1/4 in Stud, 1.05 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.45 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Red
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PN18-14R-3K | Ring Terminal | UPC - 07498380696 Key Specs
| Stud Hole Size (In.) | 27/100 |
| Stud Hole Size (mm) | 6.9 |
| Stud Size | 1/4" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
Panduit Panduit PN18-14R-3K | Ring Terminal | UPC - 07498380696 Environmental Information
| Panduit's RoHS Statement | Download and View |
