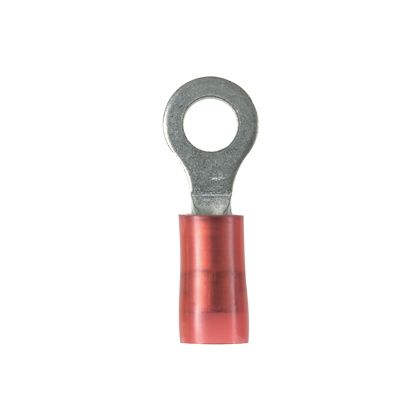

Panduit PN18-14R-C | Pan-Term PN18-14R-C Ring Terminal
Regular price
$115.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-14R-C | Pan-Term PN18-14R-C Ring Terminal
Regular price
$115.27
Unit price
Description
Description
Panduit PN18-14R-C | Pan-Term PN18-14R-C Ring Terminal
Ring Terminal, 22 – 18 AWG, 1/4" stud size, nylon insulated, standard package.
Specifications
Specifications
Panduit - PN18-14R-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PN18-14R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN18-14R-C |
| Item Description | Pan-Term PN18-14R-C Ring Terminal |
| Stud Hole Size (In.) | 1/4" |
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-150) |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Minimum Wire Insulation Diameter (In.) | 0.15 |
| Minimum Wire Insulation Diameter (mm) | 3.8 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.05 |
| Overall Length (mm) | 26.7 |
| Overall Width (In.) | 0.45 |
| Overall Width (mm) | 11.4 |
| Tongue Length (In.) | 0.53 |
| Tongue Length (mm) | 13.5 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.45 |
| Tongue Width (mm) | 11.4 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Brand Name - PN18-14R-C - Package Information
| UPC | 07498380008 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0099 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0493 |
