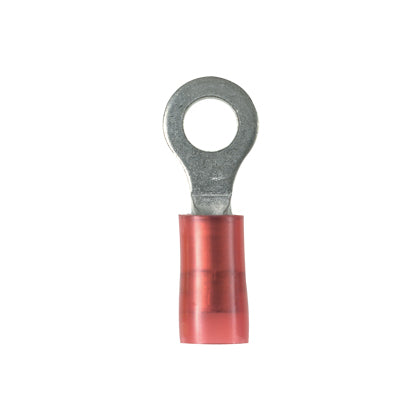

Panduit Pan-Term Terminal, Type PN-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 3/8 in Stud, 1.17 in Length, Seamed/Standard Barrel, Ring Tongue, 0.53 in W x 0.03 in THK Tongue, 600 VAC, 0.21 in L Wire Strip, Non-Expanded, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit PN18-38R-M | Ring Terminal | UPC - 07498380013 Key Specs
| Stud Hole Size (In.) | 39/100 |
| Stud Hole Size (mm) | 9.9 |
| Stud Size | 3/8" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
