Brand: Panduit
|
SKU:
PAN-PN18-4R-M

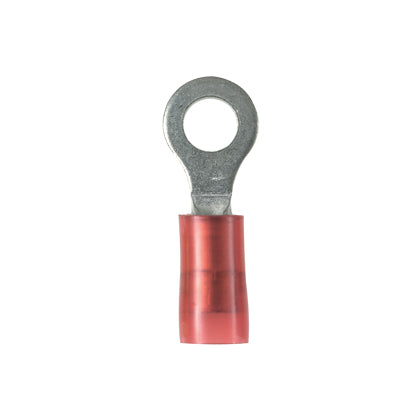

Panduit PN18-4R-M | Ring Terminal on Reel | UPC - 07498380001
Regular price
$470.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-4R-M | Ring Terminal on Reel | UPC - 07498380001
Regular price
$470.44
Unit price
Brand: Panduit
|
SKU:
PAN-PN18-4R-M
Regular price
$470.44
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Terminal, Type PN-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #4 Stud, 0.8 in Length, Seamed/Standard Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.22 in Clearance, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PN18-4R-M | Ring Terminal on Reel | UPC - 07498380001 Key Specs
| Stud Hole Size (In.) | 1/8 |
| Stud Hole Size (mm) | 3 |
| Stud Size | #4 |
| Insulation Material | Nylon |
| Maximum Wire Size (AWG) | 22 AWG |
| Minimum Wire Size (AWG) | 18 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65 |
| Base Material | Copper |
| Maximum Voltage (kV) | 600 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
Panduit PN18-4R-M | Ring Terminal on Reel | UPC - 07498380001 Data Sheets
| Cross References | Terminal Military Cross Reference | Download and View |
| Part Drawings | Nylon Insulated 22 - 18 Barrel, Ring Terminals - A41543 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PN18-4R-M | Ring Terminal on Reel | UPC - 07498380001 Environmental Information
| Panduit's RoHS Statement | Download and View |
