Brand: Panduit
|
SKU:
10044730

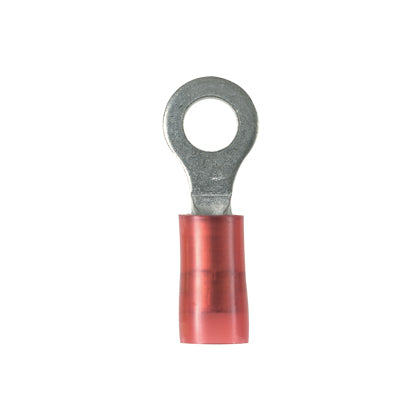

Panduit PN18-4RN-M | Pan-Term Ring Terminal on Reel
Regular price
$470.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-4RN-M | Pan-Term Ring Terminal on Reel
Regular price
$470.44
Unit price
Description
Description
Panduit PN18-4RN-M | Pan-Term Ring Terminal on Reel
Panduit Pan-Term Terminal, Type PN-RN, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #4 Stud, 0.74 in Length, Insulation Grip Sleeve/Standard Barrel, Narrow Ring Tongue, 1/4 in THK Tongue, 600 VAC, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red, 0.22 in W
Panduit - PN18-4RN-M - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Specifications
Specifications
Panduit - PN18-4RN-M - Specifications
| Stud Hole Size (In.) | #4 |
|---|---|
| Stud Hole Size (mm) | 2.5 |
| Stud Size | #4 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-148) |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Type | Ring Terminal |
| UNSPSC Code | 39121400 |
Panduit - PN18-4RN-M - Package Includes
| UPC | 07498380327 |
|---|---|
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 0.0482 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
