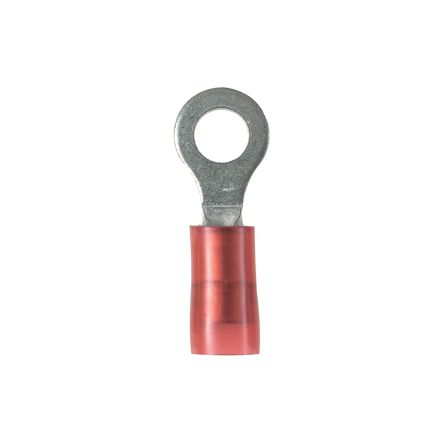

Panduit PN18-56R-C | Pan-Term PN18-56R-C Ring Terminal on Reel
Ring Terminal, 22 – 18 AWG, 5/16" stud size, nylon insulated, standard package.
Panduit - PN18-56R-C - Features
- Ring Terminal, 22 - 18 AWG, 5/16"; stud size, nylon insulated.
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PN18-56R-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PN18-56R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN18-56R-C |
| Item Description | Pan-Term PN18-56R-C Ring Terminal on Reel |
| Stud Hole Size (In.) | 5/16" |
| Stud Hole Size (mm) | 8 |
| Stud Size | 5/16" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-104) |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.7 |
| Minimum Wire Insulation Diameter (In.) | 0.15 |
| Minimum Wire Insulation Diameter (mm) | 3.8 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 27.7 |
| Overall Length (mm) | 703.6 |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.7 |
| Tongue Width (In.) | 0.25 |
| Tongue Width (mm) | 6.4 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - PN18-56R-C - Package Information
| UPC | 07498380010 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0099 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.0493 |
