Brand: Panduit
|
SKU:
10044757
Panduit PN18-6F-3K | Terminals on a Reel | UPC - 07498380635
Regular price
$1,312.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-6F-3K | Terminals on a Reel | UPC - 07498380635
Regular price
$1,312.81
Unit price
Description
Description

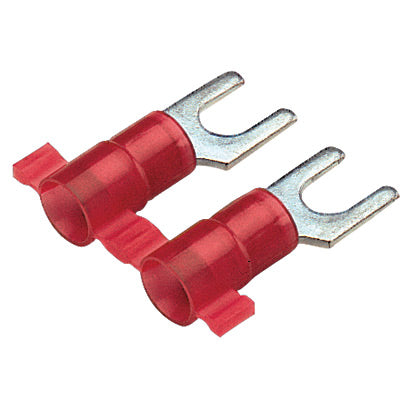

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PN-F, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.78 in Length, Insulation Grip Sleeve Barrel, Standard Fork Tongue, 0.3 in W Tongue, 600 VAC, 0.22 in L Wire Strip, 0.15 in Nylon Insulation, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Red
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit PN18-6F-3K | Terminals on a Reel | UPC - 07498380635 Key Specs
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | M3.5 |
| Wire Strip Length (In.) | 0.22 |
| Wire Strip Length (mm) | 5.5 |
| Standards Met | UL Listed 587H, E52164 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PN18-6F-3K | Terminals on a Reel | UPC - 07498380635 Environmental Information
| Panduit's RoHS Statement | Download and View |
