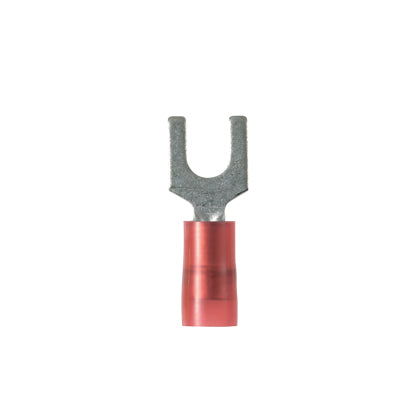

Panduit PN18-6F-M | Pan-Term Fork Terminal, Red, Nylon, 18-22 AWG, #6 Stud, PK1000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-6F-M | Pan-Term Fork Terminal, Red, Nylon, 18-22 AWG, ...
Description
Description
Protect your electrical connections with our fork terminal, the nylon-insulated body ensure a safe and reliable connection for various applications.
Fork Terminal, nylon insulated, 22- 18 AWG, #6 stud size, bulk package.
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-F, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.78 in Length, Sleeved Barrel, Standard Fork Tongue, 0.3 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.08 to 0.145 in Dia Nylon Insulation, 0.2 in Clearance, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Red
Panduit - PN18-6F-M - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
Specifications
Specifications
Panduit - PN18-6F-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN18-6F-M |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Fork Type | Standard |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380301 |
