Brand: Panduit
|
SKU:
PAN-PN18-6FF-C
Panduit PN18-6FF-C | Pan-Term PN18-6FF-C Loose Piece Forks
Regular price
$157.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PN18-6FF-C | Pan-Term PN18-6FF-C Loose Piece Forks
Regular price
$157.96
Unit price
Brand: Panduit
|
SKU:
PAN-PN18-6FF-C
Regular price
$157.96
Unit price
Shipping calculated at checkout.
Description
Description

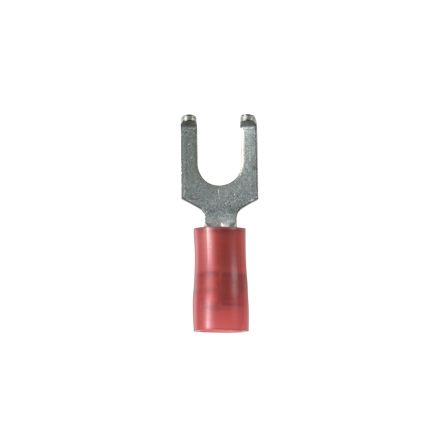

Panduit PN18-6FF-C | Pan-Term PN18-6FF-C Loose Piece Forks
Flanged Fork Terminal, nylon insulated, 22 - 16 AWG, #6 stud size, standard package.
Specifications
Specifications
Panduit - PN18-6FF-C - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PN18-6FF-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN18-6FF-C |
| Item Description | Pan-Term PN18-6FF-C Loose Piece Forks |
| Fork Type | Flanged Fork |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.41 |
| Barrel Length (mm) | 10.3 |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Brazed |
| Maximum Wire Insulation Diameter (In.) | 0.14 |
| Maximum Wire Insulation Diameter (mm) | 3.45 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Overall Length (In.) | 0.81 |
| Overall Length (mm) | 20.6 |
| Overall Width (In.) | 0.28 |
| Overall Width (mm) | 7.1 |
| Tongue Length (In.) | 0.41 |
| Tongue Length (mm) | 10.3 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.28 |
| Tongue Width (mm) | 7.1 |
| Packaging Type | Bottle |
| Product Type | Flanged Fork Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
Panduit - PN18-6FF-C - Package Information
| UPC | 07498380600 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0074 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.0368 |
