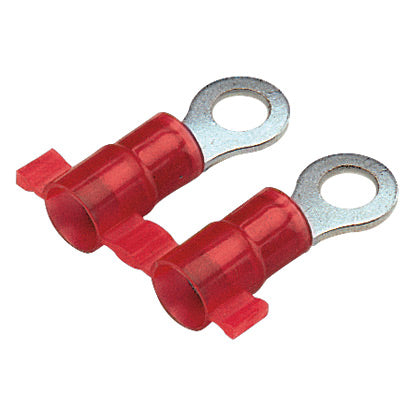

Panduit PN18-6R-3K | Reel Smart Ring Terminal on Reel
Description
Description
Our ring terminal offers reliable, secure connections with durable nylon insulation for electrical applications in various environments.
Ring Terminal, nylon insulated, metal sleeve, 22 " 18 AWG, #6 stud size.
Panduit Pan-Term Reel Smart Terminal, Type PN-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.78 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 VAC, 7/32 in L Wire Strip, 0.22 in Clearance, 221 deg F, Copper, Tin Plated, Red
Panduit - PN18-6R-3K - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- UL and CSA rated up to 600 V per UL 486
Specifications
Specifications
Panduit - PN18-6R-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PN18-6R-3K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 7/32 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| UPC | 07498380618 |
